J&M

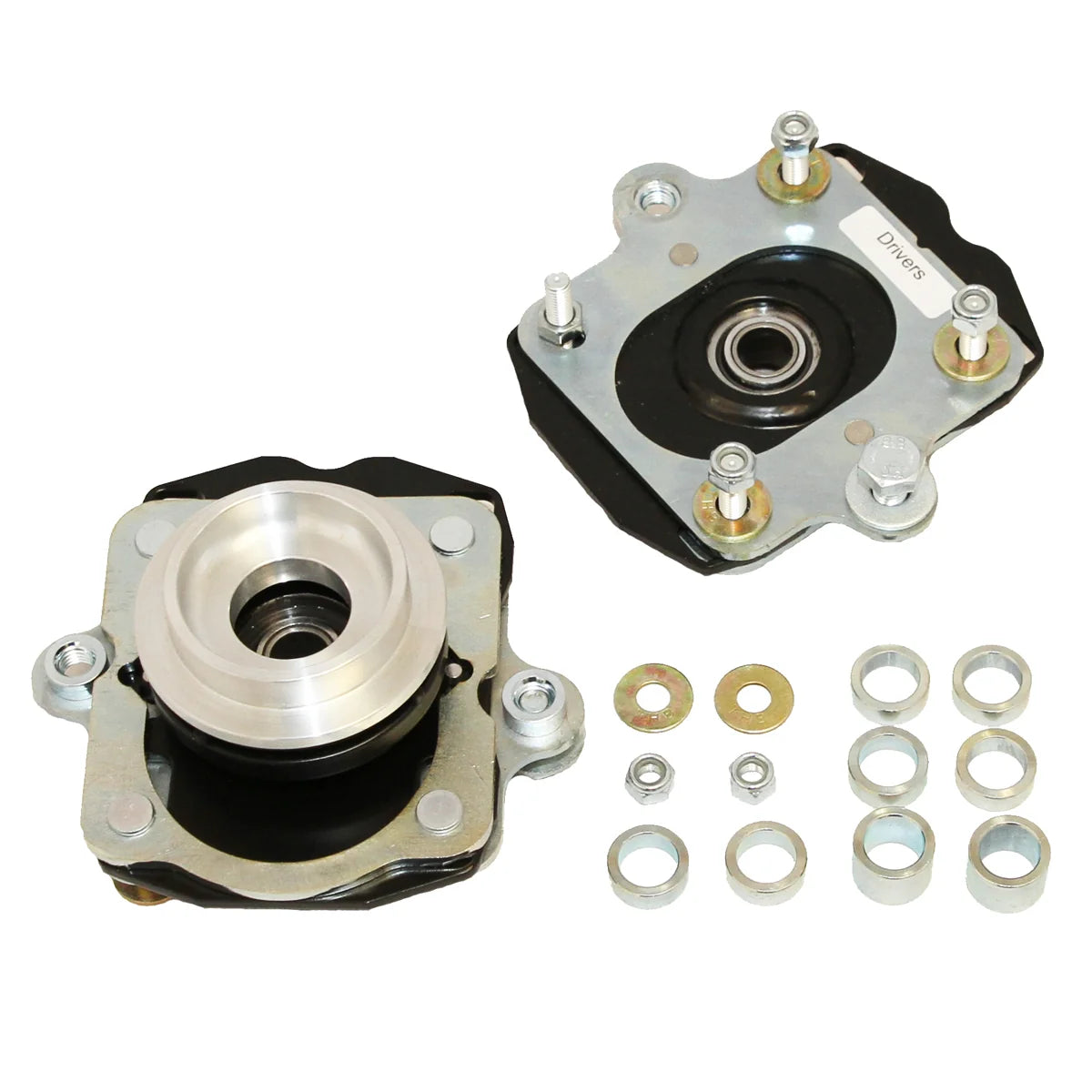

2005-2014 Mustang J&M Caster Camber Plates for Viking 2.5" Coil Over Struts

$329.95

Sale Sold out

Finish Black Red

Fits: 2005–2014 Ford Mustang with Viking struts, or other aftermarket struts that use the Fox / SN95 Mustang shaft.

Does not fit: Factory S197 struts. Those use 24220 (2005–2010 and 2007–2014 GT500) or 24221 (2011–2014 except GT500).

Confirm strut shaft type before ordering.

Part # 24222

Key Features & Benefits

For Viking and other struts that use the Fox / SN95 shaft
Roller-bearing / billet spring seat carries chassis load, not the spherical bearing
Patented independent caster and camber (US 8,820,759 and 9,073,577)
Replaceable J&M-spec spherical bearing: 52100 ball, 4340 race, sintered bronze liner impregnated with PTFE — not the standard PTFE liner
Offset street / race orientation (street = notch toward engine / more positive camber; race = notch toward fender / more negative)
Bolt-in
Black or red powder coat
Made in the USA
Lifetime to the original owner if a plate bends or a bearing wears out. Does not apply to race cars.

Factory 2005–2010 or GT500 struts?
Use 24220.

Factory 2011–2014 except GT500 struts?
Use 24221.

Alignment after install?
Yes.
